Taranis Q X7 Buddy Box Setup

How to connect two FrSKY TaranisQ X7 radios for shared Instructor and Student control

The Instructor and Student radios are connected via the DSC sockets using a 3.5mm stereo audio cable (TRS style)

Link to 3.5mm TRS cable

Note that RadioMaster radios require different cables. 3.5mm TRRS (Smart phone style) for "Old" radio and TS for "New" radios. Link to RadioMaster Trainer Cable information

FrSKY TaranisQ X7 trainer setup

Instructor radio (Master)

In the Model Setup page - Set Trainer Mode to Master/Jack

Mixer page (Adjust weights and expo as required. Best to be the same as in the Student radio)

Ch1 100 Ail E30

Ch2 100 Ele E30

Ch3 100 Thr

Ch4 100 Rud

In Special Functions page - Select a switch, Select TRAINER and STICKS and tick box

Bind Instructor radio to the receiver

In Radio Setup  > TRAINER page

Ail := 100 CH1

Ele := 100 CH2

Thr := 100 CH3

Rud := 100 CH4

Student Radio (Slave)

In the Model Setup page

Turn the Internal RF module OFF

Set Trainer to Slave/Jack

Ch Range 1 to 8 (just has to be more than 4)

Mixer Page (Adjust weights and expo as required)

Ch1 100 Ail E30

Ch2 100 Ele E30

Ch3 100 Thr

Ch4 100 Rud

Check direction of throws on both radios and adjust or invert channels as required

Best Radios for INAV 2024

This advice applies to non INAV models as well. The only difference is you would use receivers with PWM outputs for servos rather than a Serial output for a flight control board

INAV only requires a very simple model setup in the radio, just the 4 control channels plus a few mode switches.

You can get by with just about any radio system including RadioMaster, FrSKY, FlySKY, Futaba and Spektrum as long as the receiver can output a serial signal using a protocol like iBUS, SRXL2, SBUS or CRSF.

My preference is for radios that use the EdgeTX operating system and ExpressLRS RF protocol. EdgeTX is the most flexible and programmable operating system and ExpressLRS gives the most secure and long range RF link.

Spektrum and FlySKY operating systems are less flexible and more locked down than EdgeTX.

Below are my top suggestions for a good INAV radio in 2024

Note: EdgeTX, INAV and ExpressLRS are all RC Community developed OpenSource projects so they are often updated and  will require a little more research and experimentation to master than traditional locked down systems like Spektrum.

ExpressLRS Radios

1. RadioMaster Boxer ELRS  (or Boxer 4in1 with ELRS RF Module)

The Boxer is a very reasonably priced radio with plenty of switches. One momentary, one locking, two 2 position, two 3 position and one 6 position switch as well as two pots. It has a full sized JR RF module bay. The only things missing are sliders on the sides. There is a large battery bay for 2S LiPos.

2. Zorro and TX16S are good options too, although I am not a fan of the colour touch screen version of EdgeTX on the TX16S.

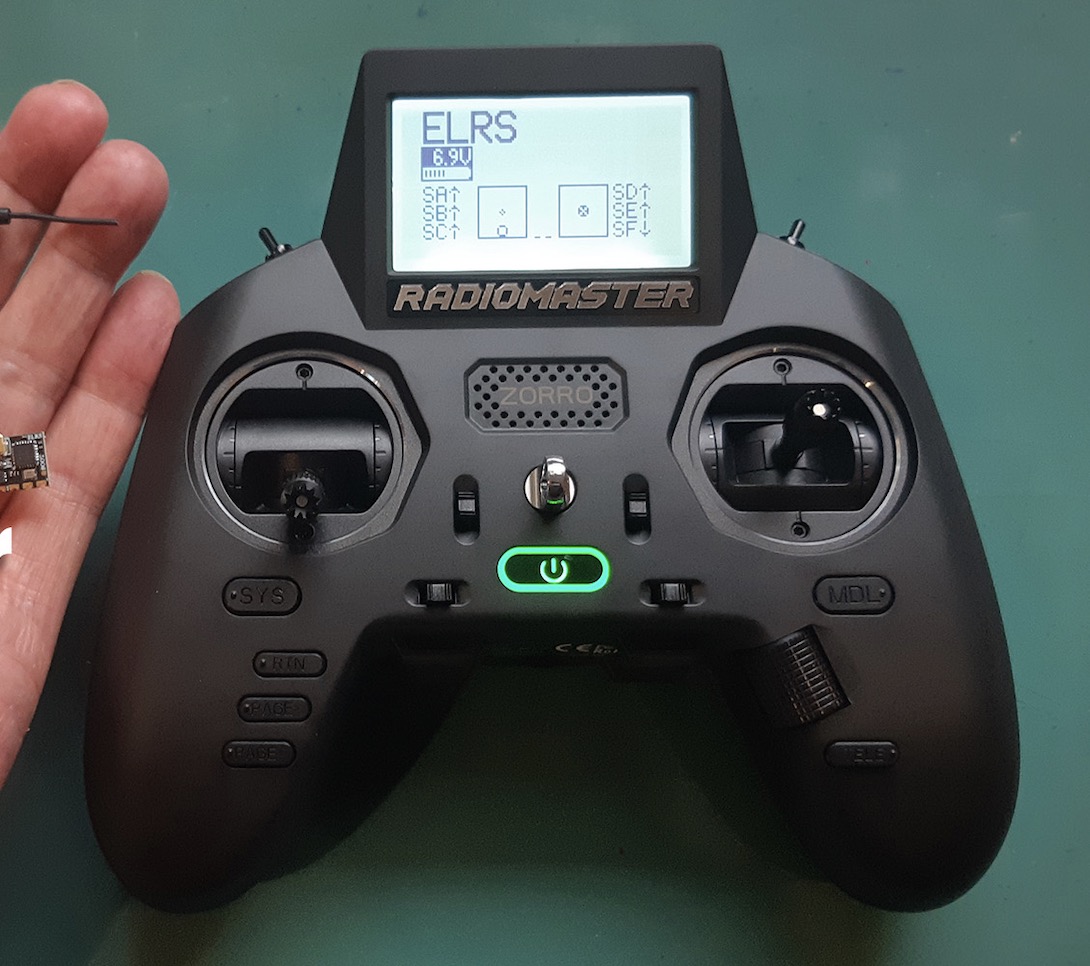

My daily radio is actually the Zorro 4in1 with Ranger ELRS RF module. The game controller form factor is not to everyone's taste but I like it. It uses 18350 Li Ion batteries which are hard to find and have less capacity. But I like the side sliders for panning cameras and also crow braking on gliders.

The TX16S would suit someone who wants all the bells and whistles including a large colour touch screen. But I find it unnecessarily big and heavy.

3. FrSKY TaranisQ X7 with external BetaFPV or RadioMaster ELRS RF Module

This is FrSKYs cheapest radio and it was my favourite for many years. I love the rotary selector dial and overall feel.

It only binds with FrSKY ACCESS and D16 receivers unless you add an external ELRS RF module.

ELRS Receivers

Any ELRS receiver can be used with any ELRS radio or module

RadioMaster RP1, RP2, RP3, RP4TD ELRS or any of the PWM receivers with Serial output enabled

BetaFPV - ELRS Nano, Lite, SuperD and Micro PWM or SuperP PWM with Serial output enabled

ELRS gear has amazing range, at least 5km even with the nano receiver versions. Or you can think of it as very secure RF link for short range even with obstacles. The diversity receivers like SuperD and RP4TD extend the link security even further for extended long range or close range penetration.

SBUS Radios

1. RadioMaster Boxer 4in1

All RadioMasters radios come in different versions. CR2500 for one chip multi-protocol (Mainly used for RadioMaster and FrSKY receivers), 4in1 with 4 chip multi-protocol, or ELRS.

2. Zorro and TX16S are also good options. ELRS external module can be added

3. FrSKY TaranisQ X7 (only compatible with FrSKY ACCESS and D16 receivers)

4. FrSKY Tandem and Twin radios (Higher quality hardware but more expensive and limited to FrSKY receivers)

SBUS Receivers

FrSKY X6R, RX6R

RadioMaster R81, R86C

FlySKY iA6B using iBUS or SBUS
