Tuesday morning dawned with no commitments till midday and no wind or rain. Finally time to maiden the DLG.
In the meantime I had flashed my Turnigy 9X transmitter with the wonderful er9X firmware and created some mixes for my 3 main RC planes. I'll post about that in more detail soon.
Anyway here's the video from this mornings adventure. Steep learning curve for the DLG style fling but I can't wait for more and maybe catching that elusive thermal.
A few repairs required after I dropped the transmitter on the last launch and the Versus nose dived into the ground. Servo tray broke loose and there are a few cracks in the pod but easily fixed. Hand strap on the transmitter is the next addition.
The first time I saw the Discus Launch Glider video by Flite Test I was intrigued.
DLGs are highly refined, super light and stiff hand launched gliders. You launch the glider high into the air using a discus style spin and fling, then go hunting for thermals.
Have a look at David Windestal's brilliant DLG video with lots of unique camera angles, and this slow mo one too. Maybe you will see why I'm hooked.
Competition level carbon fibre DLGs can cost up to $1000, but the entry level Versus DLG kit from Hobby King is much more affordable at around $200.
Versus DLG kit
The kit doesn't include servos. Four good quality 5g micros are required so I went with the recommended Dymond D47. They're expensive at $30 each but tiny and powerful.
DLGs benefit from very light and accurate servos. Some flight modes require control surface deflections of 1.5mm or so. Cheap servos just can't do that repeatedly.
UPDATE 8th Dec 2013 - both aileron servos have stripped gears after 2 separate rough landings. Looking for tougher metal gear micros as replacements. Folks on the forums say D47s are not suitable for ailerons but OK for rudder and elevator.
Download the build manual pdf from the International HK site under "Files". It's OK but lacking in important details. Build logs are available here for the similar Topsky and here for the Versus.
This MEGA discussion on RCGroups covers every aspect of the Versus DLG. 53 pages and counting but definitely worth skimming through. Important tips picked up from that discussion... 1. Don't hold your finished Versus out horizontal by the wing tip, it may fold. 2. The tail boom in the kit is too long and needs to be cut down. More on that later. The kit includes the fibreglass covered foam / carbon fibre wings, fibreglass covered balsa tail pieces, fibreglass body, carbon fibre tail boom and an accessories pack.
My accessories pack was a bit random with an extra servo mount, 2 finger pegs and tabs but no balsa piece to mount the horizontal stabiliser.
The supplied tail boom is 700mm long but the plan has it at 650mm. The general consensus on RCGroups (and Hobby King support) is that 700mm is too long. You need to cut the boom to 650mm or less, otherwise you will need lots more weight on the nose to get the CG right. Cut the tail end not the pod end or you will never fit them together.
Wing attachment hard points
Step one is to gouge out the foam around the wing bolt holes to create hard points.
Make a 10mm deep and 25mm wide rectangular space centred around each half bolt hole
Fill with an epoxy resin and micro balloon mix. Micro balloons make the mix lighter, thicker and easier to sand. There are alternatives like Talcum powder which work just as well. I actually used micro fibres and West Systems 105 epoxy because that's what I had. Might be marginally heavier.
Let it cure overnight then sand down the raised areas so the wings fit together nicely.
Re-form the half bolt holes with a round file
Wing servos
The aileron servos mount into the underneath surface of the wing below the square carbon fibre patches. The manual shows the servo butting right up to the carbon fibre spar ribbon but that means you must cut into the ribbon to get full throws of the servo arm. I moved my servos forward 5mm.
Use a sharp knife to cut through the fibreglass
Mill out the foam to the correct depth for your servo using a dremel
or carefully pick out the foam with some sort of pick.
Bore a hole through from the wing root for the servo lead. I used a drill bit by hand
Joining the wings
Tape the wings together along the undersurface using masking tape then turn the wing right way up. Glue the two wing halves together using epoxy glue (I used 5min Araldite) being careful not to fill the servo lead holes and bolt holes.
With one half of the wing weighted down lift the other tip up to 162mm to set the correct dihedral.
Support the lifted wing with something underneath making sure the join doesn't move out of alignment and let the glue cure. Once the glue has cured you can pick up and admire your full wing. Starting to look like a real glider now.
CF cloth reinforcing
Roughen up the top of the wing join with sandpaper to a width of
25mm then mask off with masking tape.
Cut two pieces of carbon fibre cloth to 25mm x 185mm. A roller cutter works well for this.
Mix up a small quantity of Epoxy finishing resin and paint some sparingly over the wing join.
Lay one piece of CF cloth onto the join and paint with more resin.
Use as little as possible just to make the cloth uniformly wet.
Blot up the excess with paper towel.
Lay some light plastic over the wet cloth to give a smooth finish when cured.
When the resin has cured re-form the bolt holes
by drilling through the CF cloth.
Reinforce the under side of the wing join following the same method.
When cured open up the bolt holes again by drilling.
Pick up your wing, marvel at your achievement and photograph it's gorgeousness (Optional)
Servos and control horns
The kit comes with a 4 pin connector but it was too small and fiddly for me to deal with so I opted to just extend the 2 servo leads to the receiver. Cut the plugs off the servo leads and extension leads.
Thread servo extension leads through the holes and solder on to the servo leads
Make sure your extensions are long enough to reach the receiver. I used 150mm extensions.
Dont glue the servos down just yet.
Mark the control horn position on the aileron. The slot should start a few mm back from the hinge line to prevent the control horn poking through into the hinge gap.
Cut through the fibreglass with a knife to create the slot and glue the control horn into position.
Aileron / Flaperon Push Rods
Cut 2 x 30mm pieces of the thin wire and make small z bends.
Glue them to the CF push rods with epoxy.
I used heat shrink tube as well to hold them in place.
Use a servo tester or your transmitter / receiver to centre the servo arms.
First make sure the clevis fits on the CF push rod. I needed to enlarge the hole to make it fit. Drill out the end servo arm hole so the clevis pin fits through with no slop. Carefully mark and cut the CF rod to the correct length. Fit the clevis and attach to the servo arm.
I made the wire z bend on the flaperon end of the push rod because it fit perfectly in the existing control horn with no slop whereas it was too loose in the existing servo arm hole
Slide the clevis along the push rod until there is zero flaperon deflection with the servo arm centred. Drop on some CA glue to fix the clevis in position on the push rod.
Finger tab and tail control horns

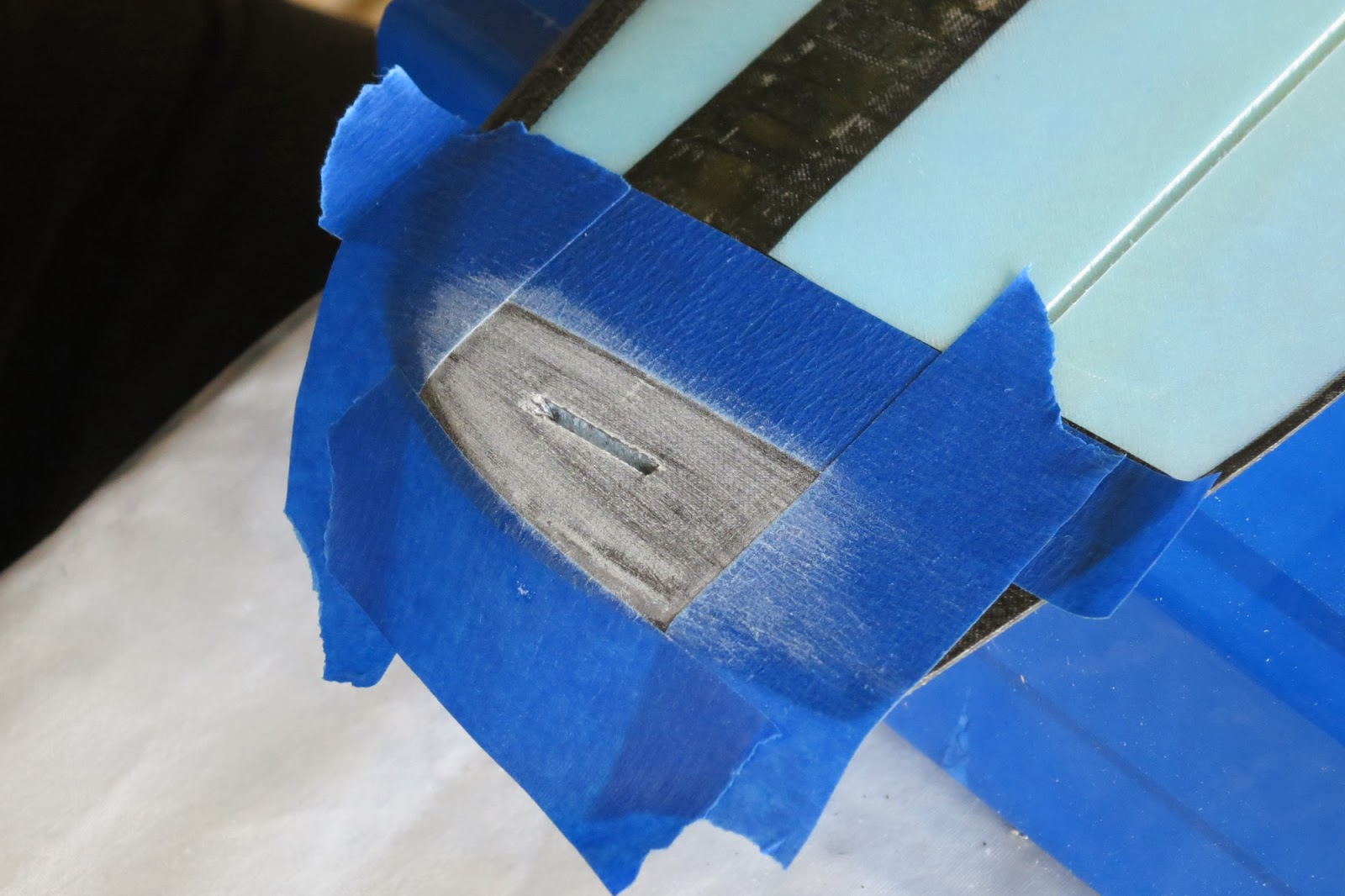

My kit seemed to provide the choice of finger peg or finger tab. They both weighed the same so I went with the tab which would give less drag. Using a knife I cut the slot about 15mm in from the end and slightly overlapping the line of the CF ribbon spar as in the Versus manual.
Mask around the slot top and bottom, roughen with sandpaper.
Reinforce with the left over CF cloth and finishing resin without the tab in place Not enough leftover cloth in my kit to use single pieces so I cut a few smaller patches to cover the area.
Once cured and sanded reopen the slot and glue the finger tab in.
I used plenty of thickened 30min epoxy. This area needs to be strong.
Make sure the tab is vertical and aligned with the centre line.
Rudder and Elevator servos
Fit the servos into the plywood mount. The Dymond D47 screws are pretty chunky so I used some smaller 9g servo screws. You need to remove one servo to get it all inside the pod.
My servo mount was too narrow and didn't reach to the pod walls so I glued in 2 balsa supports for it to sit on.
Checking to see how all the bits fit in. You need a small battery to fit into the nose. Turnigy Nano tech 300mah 2C is a good fit but maybe not heavy enough. We shall see.
The Hobby King 6ch receiver is a little too big to fit so I removed the case and replaced it with 25mm heat shrink. It fits easily now.
Boom length and tail pieces

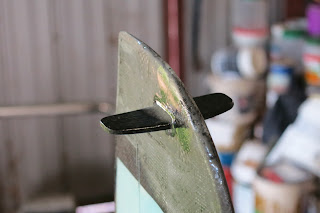

Open the preformed slots in the tail pieces with a knife and glue the control horns in place.
They go on the opposite side to the kevlar hinge tape.
The tail boom is too long at 700mm. Recommended length is 650mm or less.
I chose to cut off 60mm giving 640mm. Cut from the narrow end not the wider pod end.
Cut slots in the end of the tail boom to fit the vertical stabiliser
Glue with epoxy using as little as possible. Any excess weight in the tail area should be avoided. Make sure the tail is vertical and perfectly aligned with the centre of the boom
Glue 2 blocks of balsa together to form the horizontal stabiliser mount.
Size is 25mm front to back, 20mm high and 10mm thick
Shape it into a nice airfoil shape to reduce drag. Wrap sandpaper around the boom to shape the concave bottom surface so it fits snugly on the boom
Mark the centre line of the horizontal stabiliser
Tape it down flat and aligned with the lines running across a cutting mat
Now take a deep breath and relax. This part needs accuracy.
Glue the mount and boom on using 5 min epoxy
1. Vertical stabiliser must be at 90º to the horizontal stabiliser
2. Boom must be at 90º to the horizontal stabiliser.
Use the lines on the cutting board for reference
3. Height of the boom centre line must be the same at both ends.
I used pieces of foam board to support the boom at the right height.
There is a bit of debate on the forums about whether you should align the horizontal stabiliser with the top, bottom or centre of the boom. There doesn't seem to be a definite answer so I went with the centre. Seems logical to me.
If all that went well your tail section should look like this. Now to reinforce those joins with the supplied fibreglass cloth and epoxy finishing resin.
Cut fibreglass patches to cover either side of the rudder join and a longer piece to wrap around the boom and up either side of the elevator mount.
This fabric roller cutter works beautifully.
Paint resin on the joins then position the fibreglass cloth.
The manual says to spray with adhesive first but I find it too messy
and it makes repositioning the cloth difficult.
Wet out the cloth with more resin, sparingly of course.
Dab with the brush to remove any air bubbles
Spring / Pull tail hinges
I decided to try spring / pull control for the rudder and elevator. Main reason being I couldn't work out how to use the push rod and casing provided in the kit. The teflon casing is meant to run down the outside of the boom. I thought this looked ugly and drag inducing and I couldn't get the teflon to glue successfully. The spring / pull setup is an elegant solution and saves tail weight.
Drill angled holes for the pull string to exit from the boom
Glue in some plastic tubing for the string to run through
I had some kevlar stunt kite lines laying around so that's what I'm using for the pull string. I used the push rod wire to make hooks for attaching to the servo arm and control horns

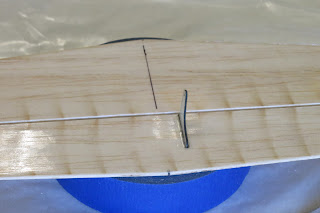

Using the 0.4mm push rod wire from the kit bend up 2 staple-shaped torsion springs.
Legs 25mm and middle 50mm
One leg is inserted into the balsa of the rudder and the other leg is inserted into the balsa of the vertical stab. Same for the elevator and horizontal stab.

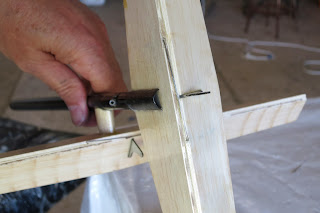

This part is quite tricky.The wire wants to break out through the fibreglass as you push it in.
I ended up drilling holes and feeling with fingers on each side whether the drill was threatening to break through. I inserted some of the teflon tubing then inserted the wire legs.
The elevator hinge kept popping out so I had to glue the legs in the teflon tube and strengthened the surrounding area with CA glue.
Here it is all connected. Seems to be a fair force on the spring, hope the servos are up to it.
Final gluing, assembly and adjustments
To secure the wing servos they were wrapped in masking tape then glued in with 5 min epoxy. The idea is that I can remove, replace or reuse them if needed.
I had to remove the spring / pull lines to glue the pod to the tail boom
Making sure wing and horizontal stab are perfectly aligned
Final adjustment of the refitted spring / pull linkage.
I changed to a thinner kevlar line and 2:1 purchase loop to allow finer adjustment. Very fiddly trying to tie knots so the rudder and elevator are centred. No doubt I'll try different methods of fine adjustment, this one is not as clean as I'd like.
Checking the CG. The manual says 70 - 80mm back from the leading edge. Mine was about 90mm back unweighted. 15g extra in the nose brought it to 75mm.
Finished weight 275g or 290g balanced correctly. Now how do you fly these things?
